Click <f> to enable the frequency measurement.

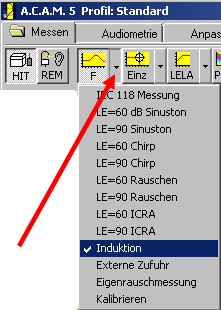

Figure 90: Frequency measurement drop-down menu

Click on the <f> drop down menu and select the procedure to be performed.

Figure 90 shows the selection: induction.

Click <go> or press the Enter key to start the actual measurement.

Click <go> again or press the ESC key to interrupt or cancel the measurement.

Figure 91: Induction window

Prior to the start of the actual measurement, a prompt for further options will be displayed (Figure 91).

1. Select the field strength for the measurement.
2. Click <Start measurement> to start the measurement.

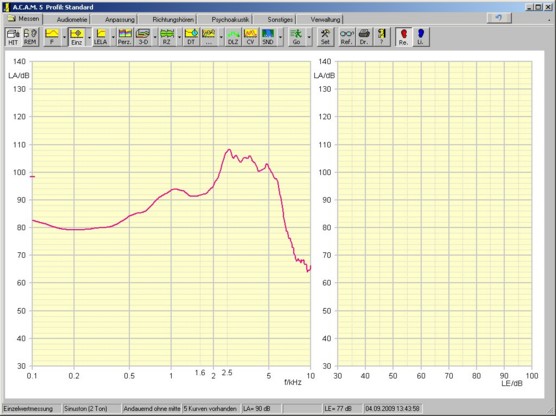

3. The measurement results will appear on the screen when completed.
4. Click <go> again or press the ESC key to interrupt or cancel the measurement.

Note: The selection menu may be disabled based on the settings in the setup menu.
