Before the Fitting Begins:

• Check the adjustments in SET (see chapter setup fitting).
• Once the first measurement has been performed, changes to the setup cannot be made.
• Select the signals, loudspeakers and levels for performing the measurement.The signal, levels, and loudspeaker settings can be adjusted for each individual memory.

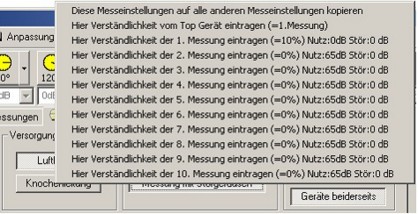

• Once the proper adjustments have been made, the settings can be applied to the entire fitting process. For more information see the section labeled "Important Advice" at the end of this section.
• For more information about the general fitting procedures please refer to the sections: "General information to the fitting" and "Control."

Fitting: Fitting measurement sub-tab

The display for the Fitting Fitting measurement tab is shown below in Figure 178.

This tab is designated for fitting measurements with the hearing aid(s).

The data within this tab are integrated into the "evaluation," the "fitting report," and the "special documentation" sections.

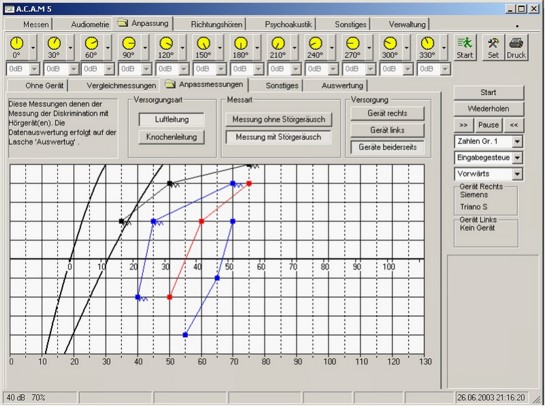

Figure 178: The User Interface Fitting Measurement

Curve memories available for different measurements

Different measurements are available for each memory such as:

• Type of care: <air conduction>, <bone conduction>
• Type of measurement: <measurement without disturbing noise>, <measurement with disturbing noise>
• Accommodation: <HA right>, <HA left>, or <HA's on both sides> can be specified.

The selected measuring values are displayed with different symbols and colors (Figure 178).

Results of curve memories displayed

The results are displayed in the diagram which corresponds to the selected memory.

If <start> or <go> are not pressed, the edit mode is active. In the edit mode, data can be entered manually into the diagram field by right clicking on the mouse.

Right click on the curve to open a submenu with the following options (Figure 179):

• Delete item: deletes the clicked point
• Delete curve: deletes the selected curve
• Delete diagram: deletes all measuring values of the fitting measurement
• Measured with multisyllabic numbers (N): identifies that the results were measured with multisyllabic numbers
• Measured with monosyllabic words (W): identifies that the results were measured with monosyllabic words
• Delete complete fitting process: Deletes all data/values of the complete fitting process (all data in all tabs).

Fitting: Miscellaneous sub-tab

In the Miscellaneous tab information can be added to the "fitting report" and the "special documentation" sections (Figure 181).

Figure 181: Miscellaneous tab within the Fitting Section
