Fitting - Analysis

Fitting Analysis sub-tab:

In the analysis tab data from each of the preceding tabs (i.e. the complete fitting process) is condensed to significant single values. In the analysis window, data from the tone and speech audiograms is also applied. The data analysis is not performed automatically, it needs to be started manually.

The display for the Fitting Analysis tab is shown below in Figure 182.

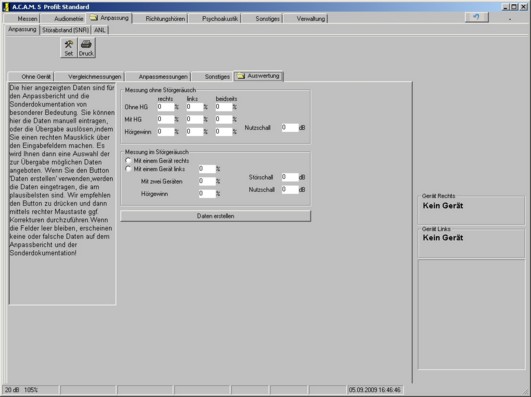

Figure 182: User display of the Fitting Analysis tab

Note:

Loudspeaker settings can be adjusted in the Analysis tab, but this information is not saved.

Data collection for the analysis may be performed in two different ways:

Click <Create Data>. The ACAM System decides which data to enter into which field.
Right click on the fields to be filled. A list of options will be provided from which selections can be made.

Recommended: First use <Create Data> and then make specific adjustments using the right click feature. All information can be edited manually (Figure 183).

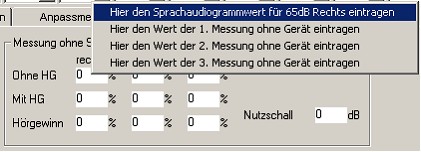

Figure 183: Example of a measurement without disturbing noise without hearing instrument clicked right.

Detailed summary of the data sources provided by clicking <Create Data>:

Measurement without noise without device on both sides	Measurement without device, memory 1. Here also the wanted sound level.
Measurement without noise without device right	Speech audiogram value, right side, at the desired sound level.
Measurement without noise without device left	Speech audiogram value, left side, at the desired sound level.
Measurement without noise with devices on both sides	Memory of the favorite instruments.
Measurement without noise with device right	This is selected if the favorite device was measured only on the right side. The selected memory is used. If no memory was indicated the tolerance test "without noise with device right" is used.
Measurement without noise with device left	This is selected if the favorite device was measured only on the left side. The selected memory is used. If no memory was indicated the tolerance test "without noise with device left" is used.
Measurements in noise (all)	Right, left, and on both sides is checked in the tolerance test, and if values are found they will be entered.

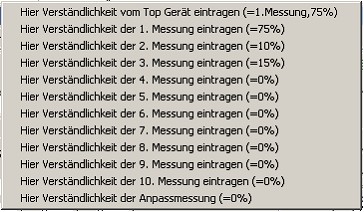

Detailed summary of the data sources provided by a right click of the described field:

	Measurement without noise without device on both sides
	Measurement without noise without device right
	Measurement without noise without device left
In the last entry (fitting measurement) the values from the left, right, or without the device are displayed.	Measurement without noise with device, left, right, or on both sides
	Measurements in noise on one side
	Measurements in noise (all)
