Click <i/o> to enable the input/output measurement.

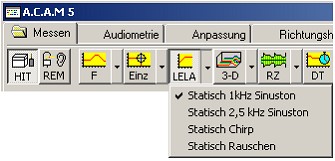

Figure 60: I/o measurement drop-down menu

Click on the <i/o> drop down menu and select the procedure to be performed.

Figure 60 shows the selection: static 1kHz pure tone.

Click <go> or press the Enter key to start the actual measurement.

Click <go> again or press the ESC key to interrupt or cancel the measurement.

Figure 61: IL-OL measurement frequency selection

Another frequency (if applicable for pure tone measurements) can be selected from the drop-down menu or entered manually.

Select the frequency (if applicable) and click <start> to begin the measurement.

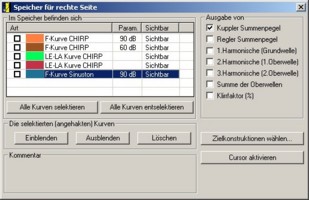

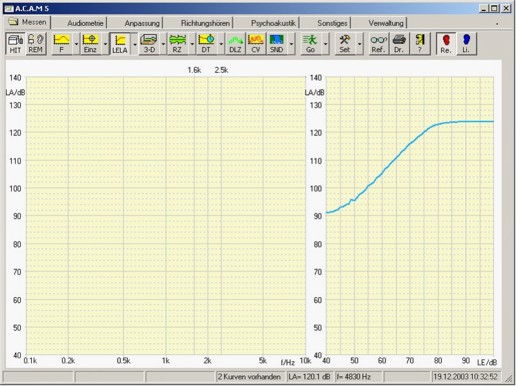

The measurement will appear on the screen after it is completed. Selected curves can be edited by clicking: <insert>, <hide>, or <delete>. Target information may also be shown or hidden.

For further information, please refer to the section: "Save Window."
