Examples for adjustments

When you want to play Sounds from the Fitting Software:

The ACAM System and the soundcard need to be connected in order for playback.

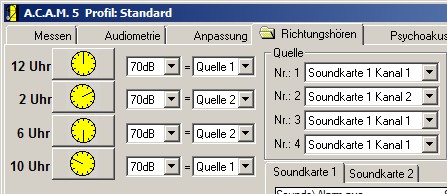

Example 1: to play sounds from soundcard 1

Configure channel 1 of the soundcard to the 12 o'clock and 10 o'clock speakers. Channel 2 of the soundcard is assigned to the 2 o'clock and 6 o'clock speakers.

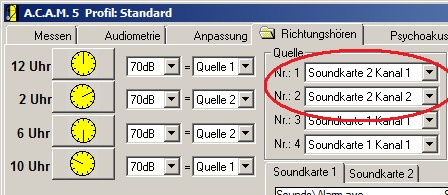

Example 2: to play sounds from soundcard 2

Set source 1 and source 2 to soundcard 2. All of the settings Only source 1 and source 2 are set to soundcard 2. All other settings from Example 1 can be carried over.

When you want to play more Sounds:

As mentioned previously, when two soundcards are established four different sounds can be played from the ACAM System.

Start the first sound file on the first soundcard (the sound file "alert" is shown in the image to the left).
The playback is initially performed on both channels of the soundcard.
Move the balance slider all the way to the left to play the sound file through only one speaker.

Start the second sound file (the sound file "aquarium" is shown in the image to the left).
Move the balance slider all the way to the right.
This will play the first signal from the speaker at the 12 o'clock position and the second signal from the speaker at the 2 o'clock position.

Enable the second soundcard by clicking on the soundcard 2 tab.
Repeat the above listed steps to play sounds from soundcard 2.
