Documentation of Care:

The fitting documentation is divided into three tabs:

• Documentation part 1
• Documentation part 2
• Documentation part 3

Fitting information is distributed into each of the three divided tabs; different print out options are available for each tab:

• Page 1: Audiological characteristics
• Page 2: Characteristics of the fitting
• Page 3: Declaration of conformity
• Page 4: Diagram page 1: audiograms and measurements without hearing aids
• Page 5: Diagram page 2: characteristics and measurements with hearing aids

Read the section "Fitting: Analysis" for more information on how to use the fitting documentation.

• In the ACAM System complete fitting documentation can be generated automatically. To do so, select <measurement without hearing aid> and <favorite device. For further information please refer to the section: "Fitting: Analysis."
• Click on <Extra documentation based on latest datas> and all information and measurements saved in the ACAM System customer database will be included in the documentation automatically (Figure 220).
• Under the Documentation part 1 tab, general information is displayed: customer data, selected hearing aids, selected earmolds, and fitting steps. The measurement results are included in the the print out or they can be printed out onto an additional page.

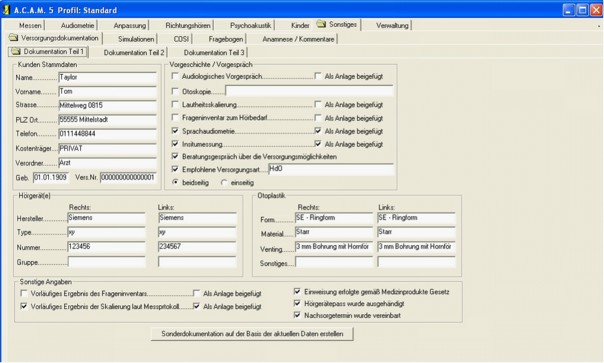

Figure 220: Documentation part 1

• Under the Documentation part 2 tab, fitting measurements are documented. Hearing aid adjustments needed based on the IEC standards 118 - 7 are also provided in this tab (Figure 221).

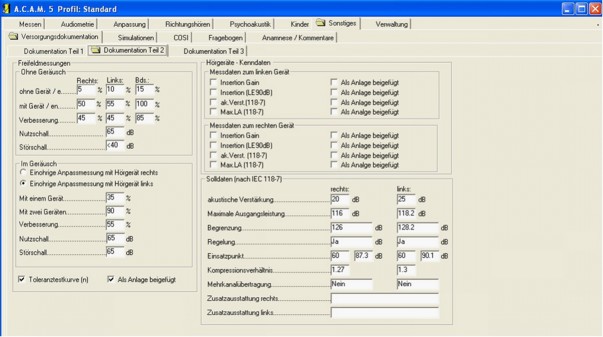

Figure 221: Documentation part 2

• Under the Documentation part 3 tab, special documentation based on the Medical Device law is provided. Comments about the fitting can also be added within this tab (Figure 222).

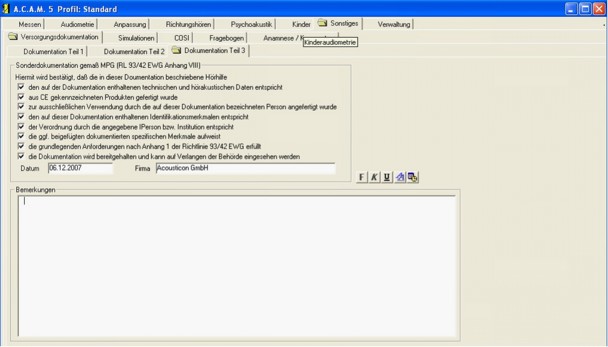

Figure 222: Documentation part 3
