To view the measured data in the time domain, enable the Data display window. Click the <Set> button, select the measure tab and enable the checkmark: show data window.

Please refer to the section: “Measuring Box Real Ear/Setup.”

The Data output window allows the user to view and evaluate data using the sliders (Figure 75). Click on <save samples> to save the data to the hard drive. Data are saved in the ACAM System file (C:\Program files\ACAM\) as an Excel table and .wav file. Click <Optimize> to set the slider to optimally view all the data. Click <Close window> to close the window.

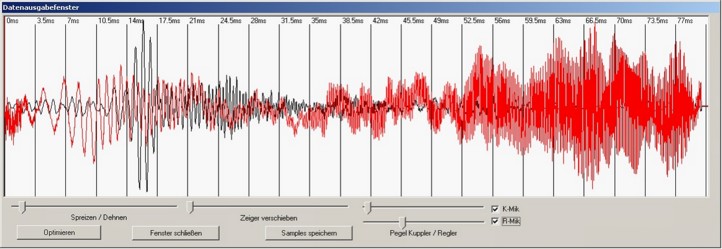

Figure 75: Data output window
