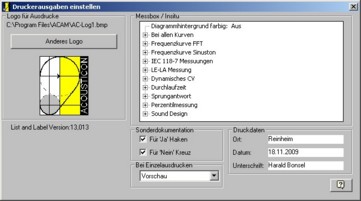

Figure : Printer Setup

In the new window, the presettings for the print out can be configured.

Fitting report, location, date: It is possible to specify a city and enter a signature on the fitting report.  Leave this section blank if multiple people work in the same office or if multiple locations are available.

Instead of the location, the text city will appear. Instead of the name, the text name will appear. This information can be entered manually. It is also possible to create special profiles for each location and each user. For more details on this topic, please refer to the section: "System."

Figure: Variante 1

Figure: Variante 2

Select a symbol to represent the enabled checkmarks within the extra documentation screen. Refer to the example on the left side of the page:

Audiological preliminary talk is checked, added as the attachment not.

In the variant 1 a checkmark is enabled for "yes" and a cross for "no".

In the variant 2 a checkmark is enabled for "yes" and no cross for "no".

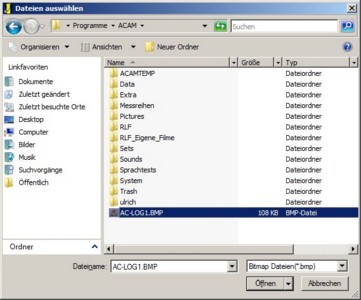

Figure : File selection for logo

Import a different logo for printouts:

Click <Other logo> and select the path and file of your company logo. Your logo must be saved as a ".bmp" file in order to use this feature. Depending on the size of your logo, the print program will automatically adjust its size to ensure a proper scale. When the logo proportions are too large, diagrams may overlap; this would require that you decrease the size of your logo. For additional assistance please contact the ACAM System hotline.

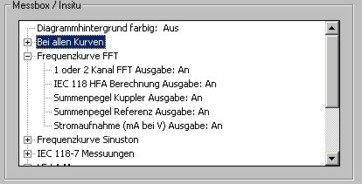

Figure: Print setup for test box / real ear

For test box and real ear measurement print outs other options can be enabled or disabled:

Select the entry to be printed to enable or disable this option. In the corresponding text an <on> or <off> button appears at the end of the line.

With single printouts: There are a number of options available for single printouts.

• Preview: A print preview is enabled and it appears in a separate window.
• Query: Before the actual print out starts a query appears where you may adjust which printer and which output format you want to use.
• Output to printer: This sends the item to be printed to the standard printer installed on your computer. A previous query does not occur, prior to printing.
• Create a PDF: The print out is formatted as a PDF file.
